Facility modelling
Systems, functions and components
Industrial Risks menu → 1. Facility modellingStructure the facility into systems, functions and components. FMEA and HAZOP reuse this hierarchy and link their records to its individual elements.
📷

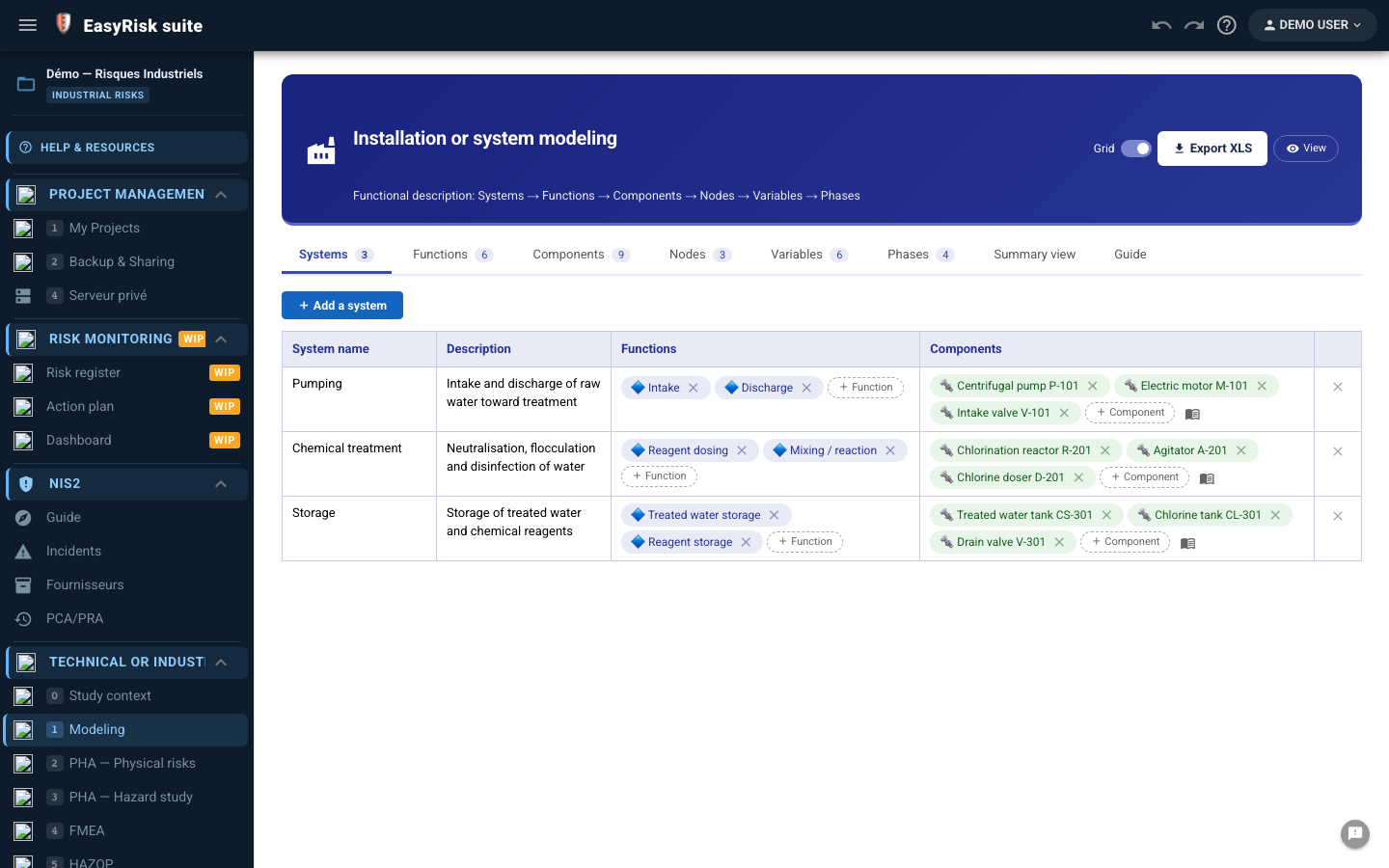

Screenshot to be added
img/ri-modelisation-01.png
What you will do
- Create the facility's main systems.
- Describe their functions and then their components when FMEA is planned.
Pitfall to avoid. This step is optional when performing only PHA; it is required for FMEA and HAZOP.
